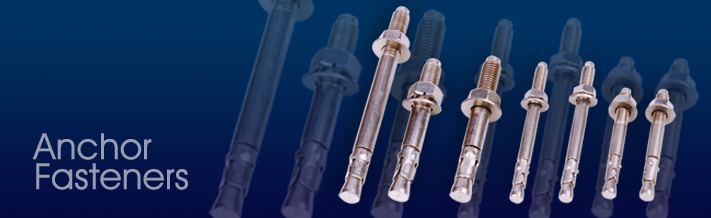

Anchor Fasteners |
Anchor Fasteners is used as an international standard quality fastener in object attachments to concrete. Inco Engineering provides various kinds of fasteners such as Hit Type Anchor, 3 Piece Anchors, Double Ring anchor, cast in place, Through Bolt Type Anchor, Wrap Sleeve Anchor, KI Taper Nut Sleeve anchor, Sleeve Anchor etc. which are used in manufacturing, construction companies. For external load it consists of threaded end on which nuts and washers can be attached.
We are national and international manufacturer, supplier and exporter of quality fasteners. These are used in building to connect the concrete foundation which are resistant to earthquakes. Our customers appreciate the fasteners based on their features like design, specifications, reliability, durability, performance, efficient, quality tested, trouble free, economical rates, best fastening, high strength and affordable range.
|
|
 |
Suitable to use in concrete For medium to heavy load. |
| |
The one-piece clip is formed around Anchor, assuring full expansion for dependable, superior holding powerExpanding clip will not fall off or twist in the hole. |
| |
Fast and efficient through fixing Economical for a wide range of fastening application. |
| |
Ideal for pipe suspension, foundation work, Aluminium glazing system, window support systems. |
| |
Available in Galvanized steel, Stainless Steel A2/ 304 & A4/ 316 Material. |
| |
The test values listed below were obtained using 200-250kgs/cm concrete (M20-M25). A safe working load should not exceed 25% of stated values. |
| |
|
|
|
Sr.
no |
Anchor
size |
Threading size
(mm) |
Max fixture
thickness
(mm) |
Drill hole Dia-x
depth
(mm) |
Setting dept
(mm) |
Pull out load(kgs) |
1 |
M8x75 |
28 |
15 |
8x60 |
50 |
800 |
2 |
M8x100 |
32 |
40 |
8x60 |
50 |
800 |
3 |
M8x75 |
28 |
10 |
10x60 |
(50) |
1000 |
4 |
M10 x 100 |
32 |
20 |
10x70 |
60 |
1200 |
5 |
M10 x 125 |
36 |
40 |
10x70 |
60 |
1200 |
6 |
M10 x 150 |
36 |
65 |
10x70 |
60 |
1200 |
7 |
M12 x 75 |
28 |
5 |
12x60 |
(50 ) |
1200 |
8 |
M12 x 100 |
32 |
10 |
12x80 |
(70 ) |
1500 |
9 |
M12x125 |
36 |
30 |
12x90 |
80 |
1700 |
10 |
M12x150 |
36 |
55 |
12x90 |
80 |
1700 |
11 |
M16 x 100 |
40 |
15 |
16x90 |
(80) |
2300 |
12 |
M16 x 150 |
50 |
20 |
16x110 |
100 |
2800 |
13 |
M16 x 180 |
50 |
50 |
16x110 |
100 |
2800 |
14 |
M16 x 200 |
50 |
70 |
16x110 |
100 |
2800 |
15 |
M20 x 150 |
50 |
15 |
20x110 |
100 |
3500 |
16 |
M20 x 180 |
50 |
45 |
20x110 |
100 |
3500 |
17 |
M20 x 200 |
50 |
80 |
20x110 |
100 |
3500 |
|
|
|
|
